Breather Valves and Telescopic Slides are crucial devices for the mechanical engineering industry.

Let us discover what they are in the following paragraphs.

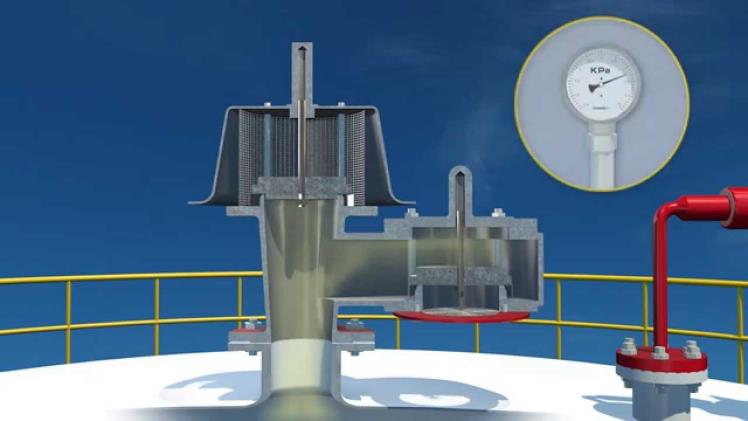

Breather Valves: What Are They?

You might think of a breather valve as a specific kind of relief valve made for tank protection. Direct-acting pressure or vacuum relief valves are another name for them.

Breather valves can be classified as pressure-only, vacuum-only, or mixed pressure-and-vacuum valves. They are either vented to the atmosphere or have flanged outputs.

Vacuum or pressure relief valves are often used on bulk storage tanks. To lessen evaporation loss, you can also put them on fixed roof tanks with floating covers.

The valves prevent the production of excessive pressure or vacuum, which could tip the system out of balance or harm the storage tank.

Weighted pallets or springs are used as the valves’ control mechanisms, and you can combine them to provide the necessary pressure or vacuum levels.

Combining pallet and spring systems into one system is a frequent approach. For instance, the pallet approach uses the vacuum settings whereas the pressure settings call for a spring section.

Benefits of Breather Valves

Breather valves’ main objective is to stop tanks from bursting or collapsing. You can think of the valves as a safety feature positioned on a nozzle opening on top of an atmospheric storage tank with a fixed roof.

Lack of an aperture or regulated opening increases the risk of an atmospheric tank with a fixed roof bursting under growing pressure. Pumping liquid into the tank or increasing vapor pressure as a result of extreme heat changes both result in a rise in internal pressure.

During pumping out or thermal fluctuations, a tank may implode or collapse. For instance, when the liquid level drops, the pressure inside the vapour space drops to below atmospheric pressure. Consequently, there could be a collapse.

It is not a cause for concern, though. By using a regulated opening on the tank, you may stop undesirable conditions from occurring.

To prevent the potential of rupturing or imploding, a tank needs to breathe. The valve is known as a breather valve because it makes breathing easier.

Telescopic Slides: What are They?

Telescopic slides are those that telescope from their closed position to a longer open segment. They are frequently employed, particularly in situations where access is necessary.

Drawers are a common illustration of such an application since they have moving ball bearings between the parts. Typically, even when filled to its maximum load rate, a drawer has a minimal movement force.

Types of Telescopic Slides

Telescopic slides come in part-extension and full-extension varieties.

Slides for part extension are made up of two rail members. Up to 75% of the closed length can be added.

Three rail members make up full-extension slides, which can extend completely. More access is made possible by the added extension.

In a closed track, linear slides feature a short inner member or carriage. These slides are frequently used in apps that provide guidance rather than access.

Such slides often work better when the load is positioned in the middle of the carriage within the slide length.

Because of the short length of the carriage and the applied torque, using the slides cantilevered will result in a substantial reduction in load capacity.

You should also be familiar with the various sliding motion classifications. There are typically three types of sliding motion: friction guides, recirculating ball bearing slides, and caged ball bearing slides.

Many rolling balls are held in place by a cage or ball retainer between the members of caged ball-bearing slides. It enables smooth movement by keeping ball bearings inside the slide’s track length.

Rolling ball bearings in recirculating ball bearing slides move back and forth inside the recirculating ball carriage. The track length determines the distance that the carriage can go thanks to the movement.

Rolling components are absent from friction guides. Instead, the guides use cutting-edge construction and surface finishing to provide sliding friction surfaces that can function smoothly over an extended period of time without the need for lubrication.

Conclusion

Everything depends on the quality of the supplier you choose. You should remember that only a good quality supplier can provide you with good quality devices. If you choose a bad supplier, you will see wastage of money.
